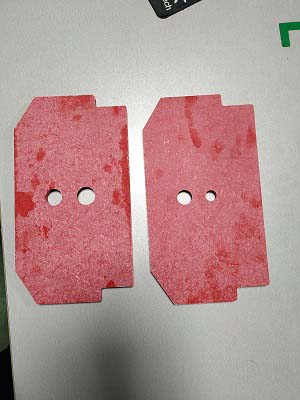

GPO-3 Fiberglass sheet

Product Name：

HC-GPO3

IEC Standard：

UPGM203

NEMA Standard：

GPO-3

German Standard：

HM2471

Product Color：

Red/White/Brown/Gray

Thickness：

0.5mm-80.0mm

Product Size：

1000*1200；1000*1300；1230*2100

Rochling Grade：

Permaglas UTR 1494

Description

Parameter

GPO-3 Glossy sheet,polyester sheet,upgm203,HM 2471,GP0-3,GPO3 board,GPO3 insulating sheet,GPO3 Manufacturer,GPO3 process

Product Description:

GPO3 Fibergalss Sheet(Red,White,Brown)Series is rigid laminated sheet made of heat pressing which composed of e-class glass-mat reinforced unsaturated polyester and inorganic filler binder.

GPO-3 Glossy sheet has excellent mechanical strength and automatic processing .It can be used extensively in low & middle voltage electrical equipments as insulating structures such as circuit breaker, switchgear, transformer, DC motor, AC contactor,converter,inverter & explosionproof apparatus etc. ; automotive industry field etc. In electrical Apparatus: making of phase & end barriers, contact terminal supports, terminal plate, insulating supports, bus bar supports and mounting panels in switchgear; arcchute plate, arc extinguishing cover & cylinder in circuit breaker and signal panels in other types of electrical apparatus; and electric melting furnace insulations. In electrical motor: making of armature parts, cover plate,slot wedge, stator, gasket,shims,carbon brush etc.

Our GPO3 comply with Rochling grade UTR 1494，some physical properties higher than Rochling grade UTR 1494

Product Advantages:

Beard to draft the country standard,have earned six patents of China
Good Arc Resistance(Arc Resistance≥180 S)
Track Resistance(CTI≥600V)
Heat Resistance(Class F，comply with 155℃ long term working temp)
Nice Fire Retardant(UL 94 V-0 Grade)
Excellent Mechanical Strength and Automatic Machining
Low Smoke,Halogen Free Products，Meets EN45545\DIN5510 certifications
RoHS,Reach Certified products

Hong Cheng Grade				HC-GPO3
IEC 893 / EN 60893 Grade				UP GM 203
DIN 7735 Grade				HM 2471
ANSI (NEMA) Grade NEMA LI-1				GPO-3
Items		Test Method	Unit	Typical Values
Physical Properties	Color	Visual inspection	----	Red/White/Brown/Grey
	Specific Gravity	IEC 60893-2:2003	g/cm3	1.95-2.05
	Water absorption	ISO62:2008	%	≤0.5
Mechanical properties	Tensile Strength	IEC 60893-2:2003	Mpa	≥130
	Compressive strength	IEC 60893-2:2003		≥300
	Flexural Strength	IEC 60893-2:2003		≥180
	Impact strength	IEC 60893-2:2003	KJ/m²	≥60
Electrical properties	Volume Resistivity	IEC 60093:1980	Ω·m	≥ 1.0 x 10¹⁰
	Surface Resistivity	IEC 60093:1980	Ω	≥ 1.0 x 10¹²
	Electric Strength ┴	IEC 60893-2:2003	kV/mm	≥ 12
	Breakdown Voltage //	IEC 60893-2:2003	kV/25mm	≥ 80
	Arc Resistance	IEC 61621:1997	sec	≥180
	PTI Proof Tracking Index PTI	IEC 60893-2:2003	---	≥600
	Dielectric Constant	IEC 60893-2:2003	---	4.0-5.0
	tgδ Dissipation Factor	IEC 60893-2:2003	---	≤0.03
Thermal properties	Coefficient of Thermal Expansion	ASTME 228-11	1/K	≤2x10^-5
Thermal properties	Temperature Index	IEC 60085:2004	℃	155
Flame Resistance performance	Oxygen Index	ISO 4589-2:1996	%O2	≥ 30
	Flame Resistance	IEC 60893-2:2003	---	V-0
	Toxicant(Emission halogen etc.)	E662	---	Low
	Toxicant(Emission halogen etc.)	E662	---	Low
Other properties	The anti microbial properties of bacteria	G21-G22	---	good
Other properties	The anti microbial properties of bacteria	G21-G22	---	good

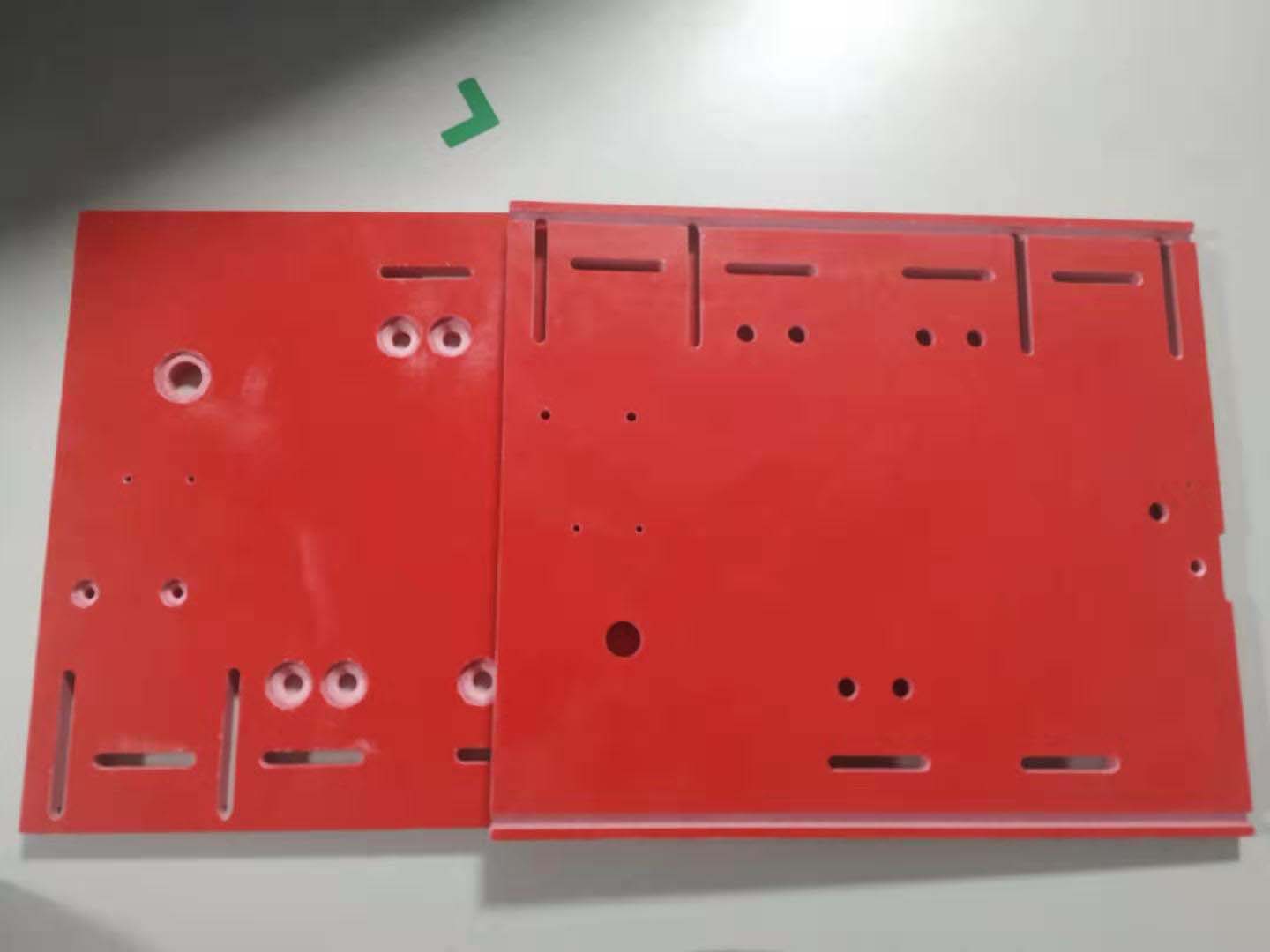

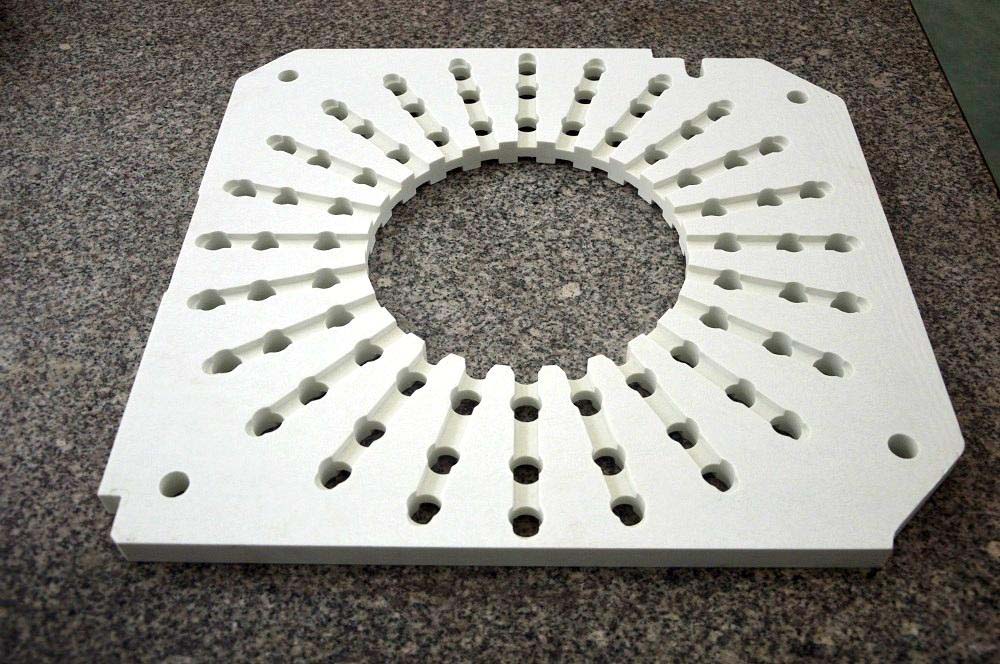

Processing Advantages:

Advantages:

1.Proficient in advanced programming software, such as: Mcam9.1, UG software programming , to meet the requirements of machining on complex surface;
2.We have a senior R&D engineers team and the team have the ability in designing the fixture independently to meet production requirements of high quality , high yield and lower cost.
3.To meet the customers’ requirements , company owned dozens of high-precision CNC equipments to short the delivery time .
4.The company have dozens of No.850&No.650 CNC machining center (with tool storage) , these machines can be used to complete multistep processes of complex parts at one-time.
5.The company owned several Large gantry CNC machines in 1000*1200mm , large panel parts can be completed at one-time by high-precision processing and avoid deviation from machining.
