Excellent Track resistance GPO-3 fiberglass Sheet / High performance electrical properties upgm203

---

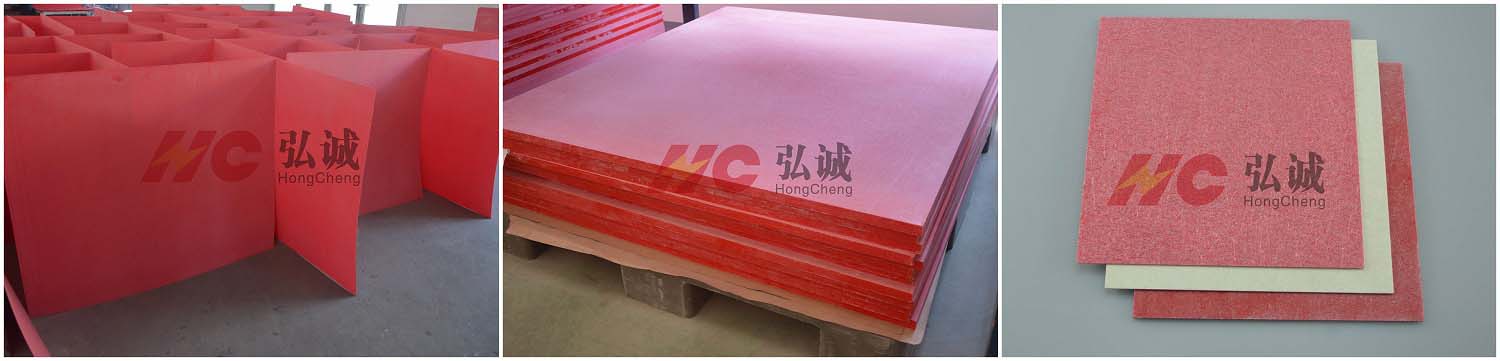

Production Introduction:

GPO-3 Grinded sheet with high thickness precision is rigid laminated sheet made of heat pressing which composed of e-class glass-mat reinforced unsaturated polyester and inorganic filler binder.On this basis, the thickness tolerance of the finished product is more accurate.

GPO-3 Grinded sheet with high thickness precision has excellent mechanical strength and automatic processing .It can be used extensively in low & middle voltage electrical equipments as insulating structures such as circuit breaker, switchgear, transformer, DC motor, AC contactor,converter,inverter & explosionproof apparatus etc. ; automotive industry field etc. In electrical Apparatus: making of phase & end barriers, contact terminal supports, terminal plate, insulating supports, bus bar supports and mounting panels in switchgear; arcchute plate, arc extinguishing cover & cylinder in circuit breaker and signal panels in other types of electrical apparatus; and electric melting furnace insulations. In electrical motor: making of armature parts, cover plate,slot wedge, stator, gasket,shims,carbon brush etc.

---

Product Advantages:

1. Thickness tolerance more precise than the laminated sheet
2. High performance of ashesive properties
3. Excellent Arc Resistance(Arc Resistance≥180 S)
4. Excellent Track Resistance(CTI≥600V)
5. Excellent Heat Resistance(Class F)
6. Excellent Thermal Impact(Temp. Index: -273℃ to +155℃)
7. Excellent Fire Retardant(UL 94 V-0 Grade)
8. Excellent Mechanical Strength and Automatic Machining
9. Low Smoke,Halogen Free Products(NF-F16-101/102)
10. RoHS,Reach Certified products

---

Hong Cheng Grade				HC-GPO3
IEC 893 / EN 60893 Grade				UP GM 203
DIN 7735 Grade				HM 2471
ANSI (NEMA) Grade NEMA LI-1				GPO-3
Items		Test Method	Unit	Typical Values
Physical Properties	Color	Visual inspection	----	Red/White/Brown/Grey
	Specific Gravity	IEC 60893-2:2003	g/cm3	1.95-2.05
	Water absorption	ISO62:2008	%	≤0.5
Mechanical properties	Tensile Strength	IEC 60893-2:2003	Mpa	≥130
	Compressive strength	IEC 60893-2:2003		≥300
	Flexural Strength	IEC 60893-2:2003		≥180
	Impact strength	IEC 60893-2:2003	KJ/m2	≥60
Electrical properties	Volume Resistivity	IEC 60093:1980	Ω·m	≥ 1.0 x 1010
	Surface Resistivity	IEC 60093:1980	Ω	≥ 1.0 x 1012
	Electric Strength ┴	IEC 60893-2:2003	kV/mm	≥ 12
	Breakdown Voltage //	IEC 60893-2:2003	kV/25mm	≥ 80
	Arc Resistance	IEC 61621:1997	sec	≥180
	PTI Proof Tracking Index PTI	IEC 60893-2:2003	---	≥600
	Dielectric Constant	IEC 60893-2:2003	---	4.0-5.0
	tgδ Dissipation Factor	IEC 60893-2:2003	---	≤0.03
Thermal properties	Coefficient of Thermal Expansion	ASTME 228-11	1/K	≤2x10-5
	Temperature Index	IEC 60085:2004	℃	155
Flame Resistance performance	Oxygen Index	ISO 4589-2:1996	%O2	≥ 30
	Flame Resistance	IEC 60893-2:2003	---	V-0
	Toxicant(Emission halogen etc.)	E662	---	Low
Other properties	The anti microbial properties of bacteria	G21-G22	---	good

---

Processing methods	CNC machining
Application of plate	Material thickness 0.1-100mm, machining tolerance according to the ISO 2768-M
The advantage of processing	1. Proficient in advanced programming software, such as: Mcam9.1, UG software programming, to meet the requirements of machining of complex surface; 2. We have a large number of senior engineers, and do the independent development of tooling and fixture to meet the production requirements of customers with high quality, high yield and low cost; 3. We have dozens of high precision CNC machining equipment, can satisfy the customer delivery requirements of shorter production; 4. We have 850 sets of CNC machining center (with a knife) mufti-step processing can complete complex parts; 5. We have many 1000*1200 large platform of Longmen CNC machining centers,can complete large panel parts with high precision production to avoid error caused by splicing processing processing.

---

Certification of Unility National Patents

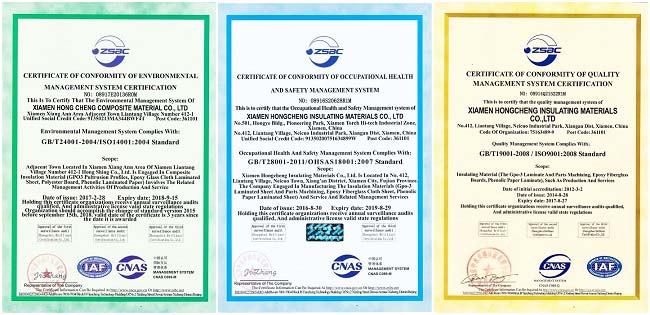

ISO9001 ISO14001 OHSAS18001 certification

---

Packing detail:plywood crate packing;plywood pallet;plastic pallet;Exports standard cartons for products
delivery detail: 5-7 working days
Crate packing

Pallet Packing

---

Our company is located in Xiang’an manufacture base of Xiamen Special Economic Zone.It is a national hi-tech enterprise with the ability to R&D,production,sale and further processing,we has became the solver of electric insulation technology project .We have more than one hundred machines including CNC and Digital controlled lathe.every kinds of Bending machine,Punching machine,have establish the completely production chain of design and precision further processing .We are the only modernization company in the country which is totally operated by Numerical control in respect of material production and the process for non-metallic insulating spare parts.All of the products have gained the UL certification of the USA,The French national standard certification,CEMT,RoHS,Reach and many national& international authoritative organization certification.This provides an stability guarantee of material for further.
