SMC sheet

Description

Parameter

SMC Glossy sheet,polyester sheet,SMC board,SMC insulating sheet,SMC Manufacturer,SMC process,Sheet Molding Compound

Product Description:

SMC is one kind of thermoset,it is also known as sheet molding compound which consists of glass fiber reinforced with unsaturated polyester resin.

Product Advantages：

Gained DIN5510 certification（railway traffic special）
Gained EN45545 certification（railway traffic special）
Excellent Arc Resistance（Arc Resistance≥180 S）
Excellent Track Resistance（CTI≥600V）
Excellent Heat Resistance（Class F）
Excellent Thermal Impact（Temp. Index: -273℃ to +155℃）
Excellent Fire Retardant（UL 94 V-0 Grade）
Excellent Mechanical Strength and Automatic Machining
Low Smoke,Halogen Free Products（NF-F16-101/102）
RoHS、Reach Certified products

Feature.it has high mechanical strength,dielectric strength, good flame resistance, tracking resistance, arc resistance and higher withstand voltage, as well as low water absorption, stable dimension tolerance and small bending deflection.
Application:this product is used for making all kinds of insulation boards of switch gears in high or low voltage switch gears. It is also applicable for making other insulation structural parts or directly molded into all kinds structural parts or profiles as per customer's specia1 drawings.

弘诚产品编号 Hong Cheng Grade						HC-SMC
项目Items				测试方法 Test Method	单位 Unit	指标 Values
中文		英文		测试方法 Test Method	单位 Unit	指标 Values
物理性能 Physical Properties	颜色		Color	目测 Visual inspection	----	红色/白色 Red/White
	比重		Specific Gravity	IEC 60893-2:2003 8.1	g/cm3	≥1.80
	吸水率		Water absorption	ISO62:2008 8.2	%	≤0.5
机械性能 Mechanical properties	弯曲强度		Flexural Strength at 23℃⊥	IEC 60893-2:2003 5.1	Mpa	≥170
	弯曲强度		Flexural Strength at 130℃⊥	IEC 60893-2:2003 5.1	Mpa	≥70
	压缩强度		Compressive strength	IEC 60893-2:2003 5.3	Mpa	≥300
	冲击强度		Impact strength	IEC 60893-2:2003 5.5.3	KJ/m²	≥60
	拉伸强度		Tensile Strength	IEC 60893-2:2003 5.7	Mpa	≥100
电气性能 Electrical properties	电气强度		Electric Strength ┴	IEC 60893-2:2003 6.1.2	kV/mm	≥ 12
	击穿电压		Breakdown Voltage //	IEC 60893-2:2003 6.1.3	kV/25mm	≥ 80
	介电常数		Dielectric Constant	IEC 60893-2:2003 6.2	---	4.0-5.0
	介质损耗因数		Dissipation Factor	IEC 60893-2:2003 6.2	---	≤0.03
	耐电痕化指数		Proof Tracking Index	IEC 60893-2:2003 6.4	---	≥600
	体积电阻率		Volume Resistivity	IEC 60093：1980	Ω·m	≥ 1.0 x 10¹⁰
	表面电阻率		Surface Resistivity	IEC 60093：1980	Ω	≥ 1.0 x 10¹⁰
	浸水后绝缘电阻		Insulation resistance after immersion in water	IEC 60893-2 6.3	Ω	≥1.0×10¹⁰
	耐电弧		Arc Resistance	IEC 61621：1997	sec	≥180
热性能 Thermal properties	温度膨胀系数		Coefficient of Thermal Expansion	ASTME 228-11	1/K	≤2x10^-5
热性能 Thermal properties	温度指数		Temperature Index	IEC 60085:2004 7.1	℃	155
燃烧性能 Flame Resistance performance	氧指数		Oxygen Index	ISO 4589-2:1996	%O2	≥ 30
	阻燃性		Flame Resistance	IEC 60893-2:2003 7.2 UL 94	---	V-0（≥3mm）
	毒性含量（卤素的释放等）		Toxicant(Emission halogen etc.)	E662	---	低Low
其他性能 Other properties	抗微生物性能细菌		The anti microbial properties of bacteria	G21-G22	---	良好good

Processing Advantages:

Advantages:

1.Proficient in advanced programming software, such as: Mcam9.1, UG software programming , to meet the requirements of machining on complex surface;
2.We have a senior R&D engineers team and the team have the ability in designing the fixture independently to meet production requirements of high quality , high yield and lower cost.
3.To meet the customers’ requirements , company owned dozens of high-precision CNC equipments to short the delivery time .
4.The company have dozens of No.850&No.650 CNC machining center (with tool storage) , these machines can be used to complete multistep processes of complex parts at one-time.
5.The company owned several Large gantry CNC machines in 1000*1200mm , large panel parts can be completed at one-time by high-precision processing and avoid deviation from machining.

Certification of Unility National Patents

ISO9001 ISO14001 OHSAS18001 certification

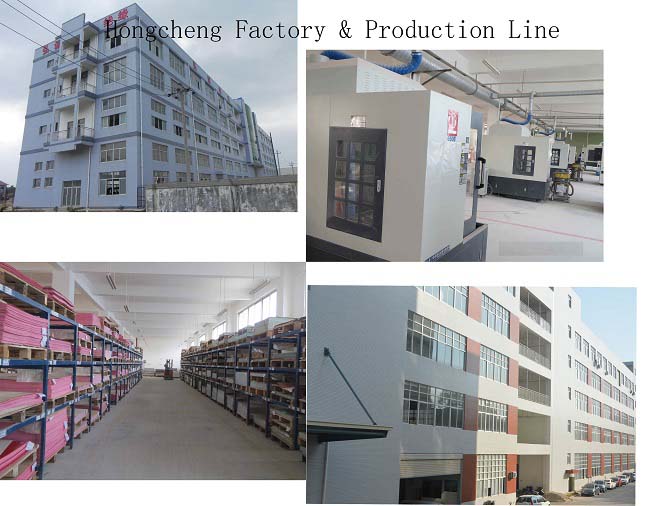

Our company is located in Xiang’an manufacture base of Xiamen Special Economic Zone.It is a national hi-tech enterprise with the ability to R&D,production,sale and further processing,we has became the solver of electric insulation technology project .We have more than one hundred machines including CNC and Digital controlled lathe.every kinds of Bending machine,Punching machine,have establish the completely production chain of design and precision further processing .We are the only modernization company in the country which is totally operated by Numerical control in respect of material production and the process for non-metallic insulating spare parts.All of the products have gained the UL certification of the USA,The French national standard certification,CEMT,RoHS,Reach and many national& international authoritative organization certification.This provides an stability guarantee of material for further.
