Product Introduction
UPGM203 is known as GPO-3 which was made of fiberglass and polyester resin , the fiberglass was impregnated in polyester resin blended the aluminium hydroxide material
and then press under the high temperature & pressure by machine.
This material with so many advantages such as weather fastness , low smoke , non-poisonous , UL94-V0 flame retardant rating , halogen- free , arc＞180seconds .
Weather fastness :
This material can maintain good performance at both high and low temperatures. For example, some of our customers are working on the Qinghai-Tibet railway project.
In winter, the temperature on the Qinghai-Tibet Plateau can be as low as -55℃ , which requires our materials to maintain excellent electrical and mechanical properties
in such a low temperature for a long time. In terms of high temperature resistance, the temperature resistance grade of this material is F grade.
Some customers are doing photovoltaic projects in desert areas, and they require materials to maintain excellent electrical and mechanical properties in desert environment which our materials can meet the requirements.
Low smoke , non-toxic and UL94-V0 flame retardant rating:
The low smoke, non-toxic and flame retardant properties of the material are very important in rail transit industry, this material is widely used in subway and high-speed rail projects.
Subway and high-speed rail carriage are densely populated areas. Once a fire breaks out, smoke and toxic gases produced by the products will spread rapidly in high-speed subway and
high-speed rail carriage while running , posing a great threat to the safety of passengers.
Halogen- free :
The material is halogen-free. Halogens include fluorine, chlorine, bromine, iodine, astatine, and so on. If the human body is exposed to halogen substances for a long time,
it will harm human health. Therefore, most developed countries in Europe and North America have strict regulations on the halogen content of materials. Our materials have passed halogen free
test and obtained the test report.
Arc＞180seconds:
Arc ＞180seconds is a very important index in the field of insulating materials, in transformers, switch cabinets, inverters and other electrical products are very high requirements for arc resistance.
These cabinets in the process of operation, due to the high voltage will produce arc, if the arc resistance is not qualified, the insulation material will be carbonized under the impact of the arc,
it caused in the loss of insulation performance of insulation materials and insulation sheet by arc breakdown, damage to the whole equipment.
After nearly 20 years of development, our company has become the most important manufacturer of UPGM203 materials. Our products have passed UL certification and passed
ROHS\REACH\EN45545 and etc. Our products have been exporting to more than 30 countries and regions all over the world.
The customers include quite a number of TOP500 and leading enterprises in the industry at home and abroad. Our company supplies a large number of UPGM203 materials to
these famous customers every year and has been recognized by them.

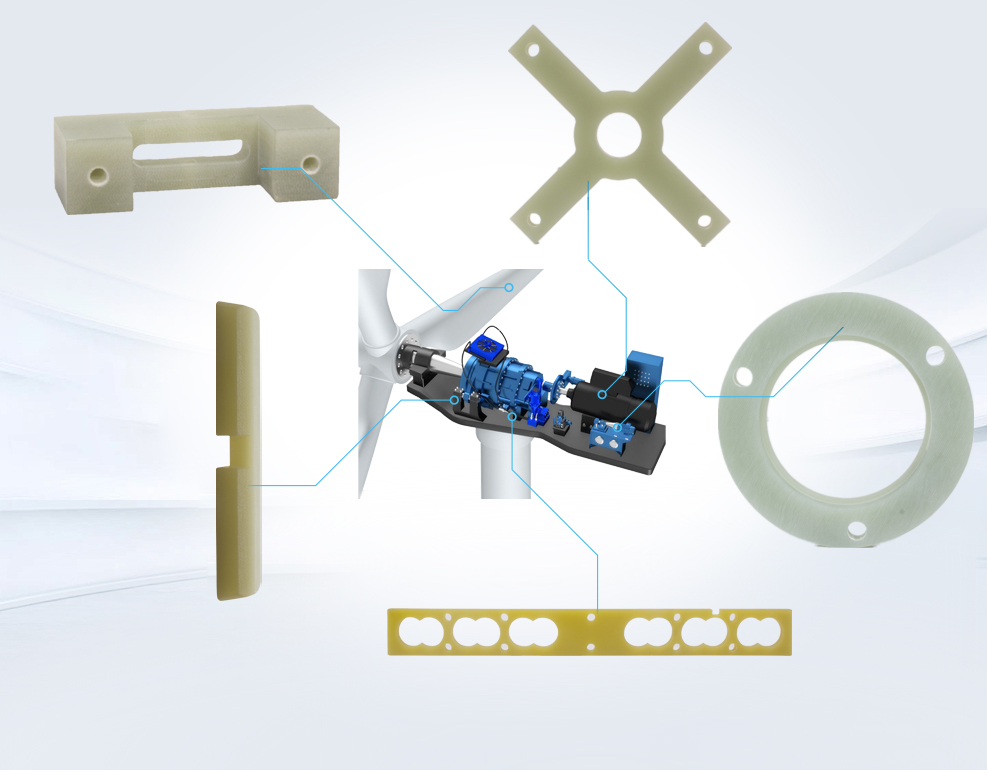

UPGM203 because of its excellent performance has a very broad application in various industries, such as power transmission and transformation,
photovoltaic, rail transportation and so on . As every industry to UPGM203 product performance requirements more and more high, this of material is also more and more important in the
industry, our company will continue to improve, to adapt it to the more extensive application fields.
Advantages of material and machining :
1. GPO3 material can be machined by CNC and tolerance can meet ISO2768-F ;
2. We have a senior R&D engineers team and the team have the ability in designing the fixture independently to meet production requirements of high precision;
3. The company have hundred of CNC machining center (with tool storage) , machines can be used to machine multi step processes of complex parts at one-time;
Application of GPO-3 material
It is widely used in the low voltage electrical industry in the European and American countries.
1. Mould case circuit breaker
2. safety door
3. arc plate
4. slot wedge, shifting cover spacer ,gasket

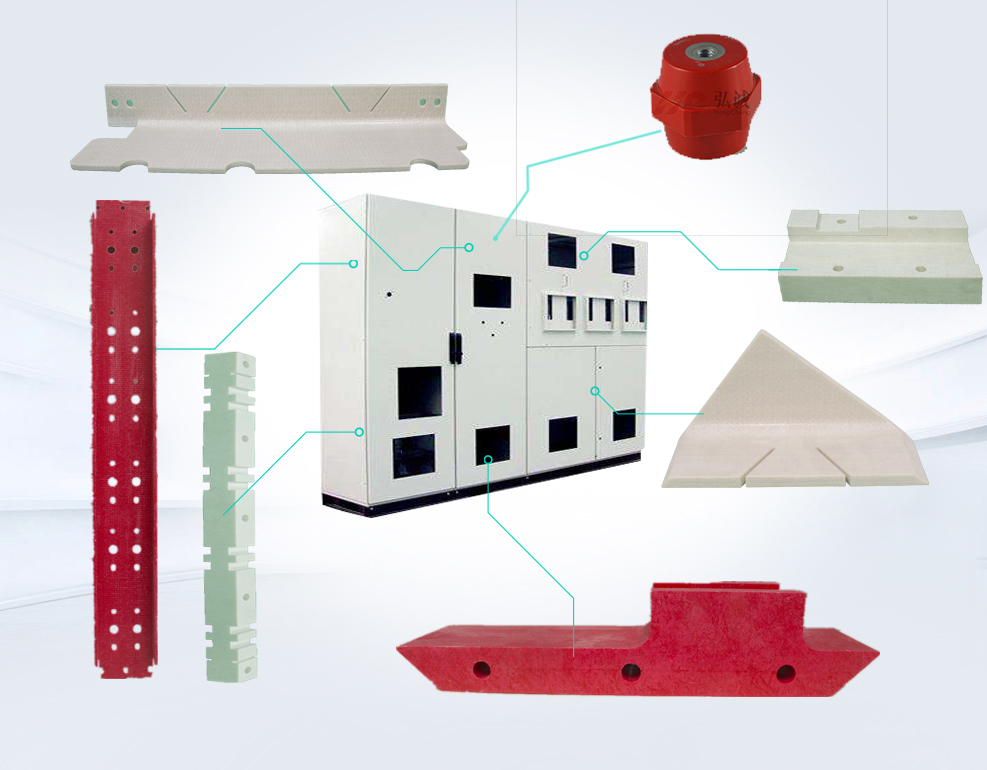

5. insulation support in switch cabinet
6. bus-bar clamp
7. Clamp Connector
8. Top cover and bottom cover in transformers .
